Car Bottom Furnace / Kiln

images
Features :

Applications :

Description :

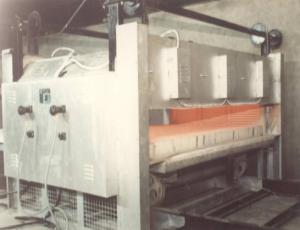

CAR BOTTOM FURNACE / KILN are custom build furnaces for various heat treatment processes of large / big components. The general arragement is rectangular horizontal chamber constructed out of refractory with high service temperature, with vertical lifting counter balanced insulated door. The bogie can be loaded manually / completely Mechanised. The centralised control panel is floor mounted


MODEL HEIGHT WIDTH DEPTH HEATLOAD MAXTEMP
CBF50200LG 500 mm 700 mm 2000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 650°C Request Quote
CBF30100LG 300 mm 600 mm 1000 mm 20000 Kcal/ Hr - LPG/ LNG 650°C Request Quote
CBF45100LG 450 mm 750 mm 1000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 650°C Request Quote
CBF45150LG 450 mm 750 mm 1500 mm 1500 mm 650°C Request Quote
CBF45200LG 450 mm 750 mm 2000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 650°C Request Quote
CBF60150LG 600 mm 900 mm 1500 mm 20000 Kcal/ Hr x 2- LPG/ LNG 650°C Request Quote
CBF60200LG 600 mm 900 mm 2000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 650°C Request Quote
CBF30100LE 300 mm 600 mm 1000 mm 18 KW 650°C Request Quote
CBF45100LE 450 mm 750 mm 1000 mm 24 KW 650°C Request Quote
CBF45150LE 450 mm 750 mm 1500 mm 30 KW 650°C Request Quote
CBF45200LE 450 mm 750 mm 2000 mm 36 KW 650°C Request Quote
CBF50200LE 500 mm 700 mm 2000 mm 36 KW 650°C Request Quote
CBF60150LE 600 mm 900 mm 1500 mm 42 KW 650°C Request Quote
CBF60200LE 600 mm 900 mm 2000 mm 45 KW 650°C Request Quote
CBF30100HE 300 mm 600 mm 1000 mm 30 KW 1000°C Request Quote
CBF45100HE 450 mm 750 mm 1000 mm 36 KW 1000°C Request Quote
CBF45150HE 450 mm 750 mm 1500 mm 39 KW 1000°C Request Quote
CBF45200HE 450 mm 750 mm 2000 mm 54 KW 650°C Request Quote
CBF50200HE 500 mm 700 mm 2000 mm 45 KW 1000°C Request Quote
CBF60150HE 600 mm 900 mm 1500 mm 60 KW 1000°C Request Quote
CBF60200HE 600 mm 900 mm 2000 mm 75 KW 1000°C Request Quote
CBF50200HG 500 mm 700 mm 2000 mm 20000 Kcal/ Hr x 2 - LPG / LNG 1000°C Request Quote
CBF30100HG 300 mm 600 mm 1000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 1000°C Request Quote
CBF45100HG 450 mm 750 mm 1000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 1000°C Request Quote
CBF45150HG 450 mm 750 mm 1000 mm 20000 Kcal/ Hr x 2 - LPG/ LNG 1000°C Request Quote
CBF45200HG 450 mm 750 mm 2000 mm 30000 Kcal/ Hr X 2- LPG/ LNG 1000°C Request Quote
CBF60150HG 600 mm 900 mm 1500 mm 30000 Kcal/ Hr X 2- LPG/ LNG 1000°C Request Quote
CBF60200HG 600 mm 900 mm 2000 mm 40000 Kcal/ Hr x 2- LPG/ LNG 1000°C Request Quote
