Glass Processing
Wet Scrubber
Applications :
Description :

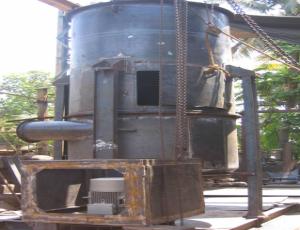

The high performance wet dust collector is a self-contained, welded sheet metal construction of cylindrical design with a sturdy supporting structure with water container. The exhaust system of a spraying area as part of a spray coating cell basically has to meet the two objectives: 1) Removal of the spray dust from the spraying zone in order to avoid impurities and condensed vapor becoming entrapped the coating. 2) Clean the waste air before it is released into the surrounding air.
| MODEL | CAPACITY | WATER CONNECTION | WATER CONTAINS | HEIGHT | DIAMETER | HEATLOAD | OTHER |
|---|---|---|---|---|---|---|---|
| WS5400 | 7200 m3/h | R 5/4 " | 560 L | 4200 mm | 1100 mm | 8 KW | Electro- mechanical Water regulation |
| WS7200 | 7200 m3 | 4590 mm | 1350 mm | 11 KW | Electro-mechanical water regulation | ||
| WS9000 | 9000 m3/h | 4940 mm | 1500 mm | 15 KW | Electro-mechanical water regulation | ||
| WS11000 | 11000 m3/h | 4940 mm | 1500 mm | 18 KW | Electro-mechanical water regulation | ||
| WS15000 | 15000 m3/h | 5390 mm | 1750 mm | 22 KW | Electro-mechanical water regulation | ||
| WS21000 | 21000 m3/h | 5740 mm | 2000 mm | 30 KW | Electro-mechanical water regulation |
