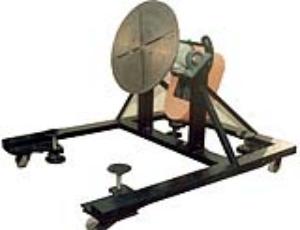

Tilting Turn Table
Applications :
Description :
Tilting turn table will be manufactured fabricated out of heavy duty structural member i.e. Channels, Angles etc. and Sheet metal covers, and machined parts duly treated with 2 coats of metal primer and finished with Anticorrosive paint with capacity to withstand at high ambient temp. It will consist of casted and machined housing on which the shaft hardened face trust bearing will be mounted at the top with upper flange to adopt face plate of 610 mm Dia. D.C. Motor mounting plate and will be fitted with desired ratio. The entire housing assembly will be supported with self align type pillow block bearing housing mounted on inclined base. A manually operated lever connected to Gear box & coupling will be provided with heavy duly Caster, to move the unit to desire location & provision for mechanical lifting Jack the lift the frame by 1/4" on +ve and -ve side. 25 mm thk face plate casted out of aluminum all and machined with 4 nos slot for mounting the job four nos. counter bored hoes for counting the face plate on base plate.
| MODEL | DIAMETER | OTHER | |
|---|---|---|---|
| TT300T | 300 mm | WEIGHT OF JOB 250 KG | Request Quote |
| TT600T | 600 mm | WEIGHT OF JOB 250 KG | Request Quote |
| TT750T | 750 mm | WEIGHT OF JOB 250 KG | Request Quote |
| TT300S | 300 mm | WEIGHT OF JOB 250 KG | Request Quote |
| TT600S | 600 mm | WEIGHT OF JOB 250 KG | Request Quote |
| TT750S | 750 mm | WEIGHT OF JOB 250 KG | Request Quote |
